New power amplifier professional 3 in 1 karaoke digital touch amplifier with microphone
Product Detail

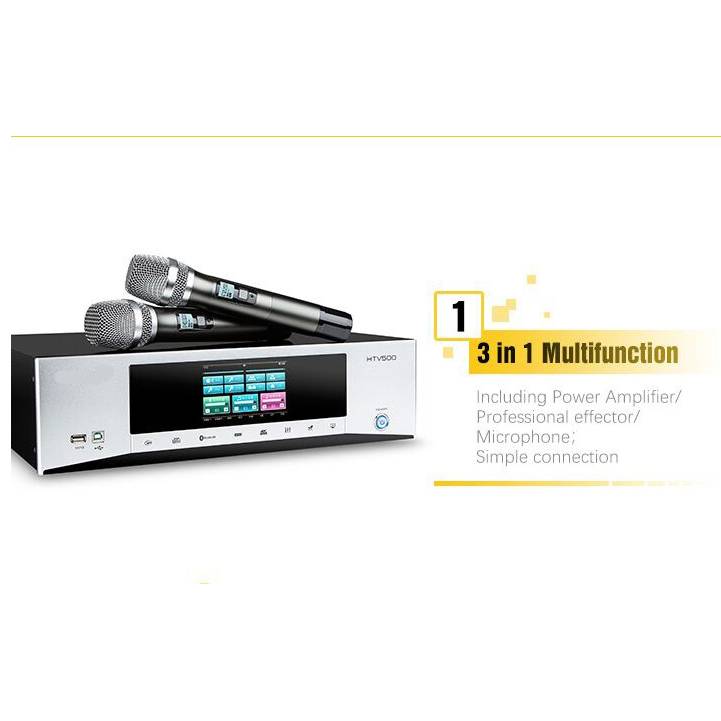

1. 3 in 1 multiple function
A collection of professional power amplifiers/pre-effects/microphones in one, simple connection and convenient matching.

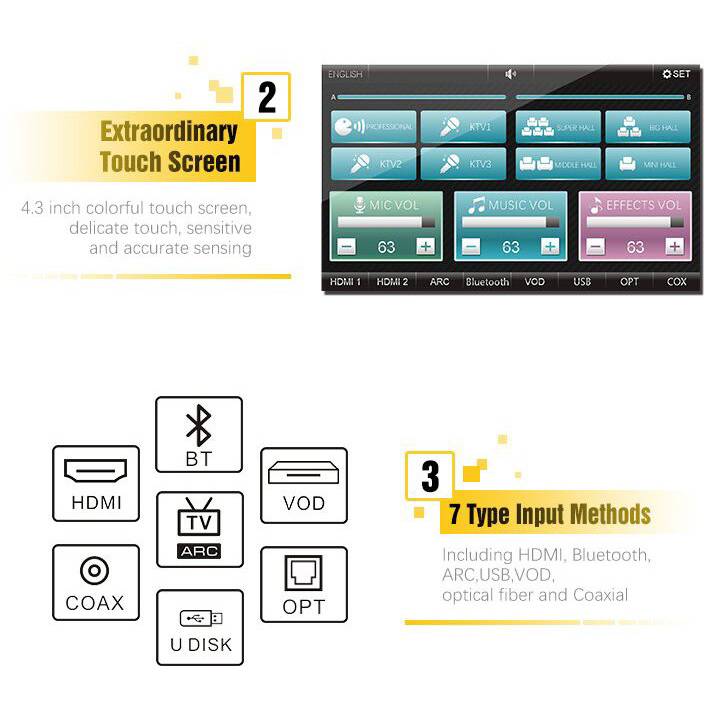

2. Touch screen control
Equipped with a 4.3-inch high-quality color touch screen with delicate touch, sensitive and precise sensing.
3. 7 input methods
Including HDMI, ARC, Bluetooth, USB, VOD, optical fiber, coaxial.
4. 8 kinds of K song modes
Free to switch, easy to use, easy to control, there is always a mode that belongs to you.

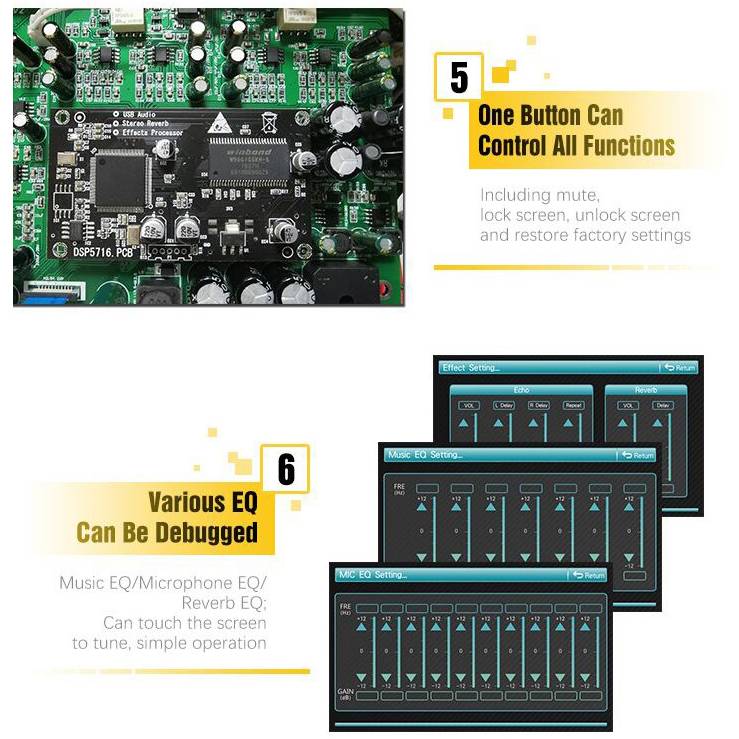

5. One key control
One key to mute, one key to lock the screen, one key to unlock, one key to restore factory settings.
6. Various EQ adjustable
Music EQ, microphone EQ, reverberation EQ can directly touch the screen for tuning, simple operation.

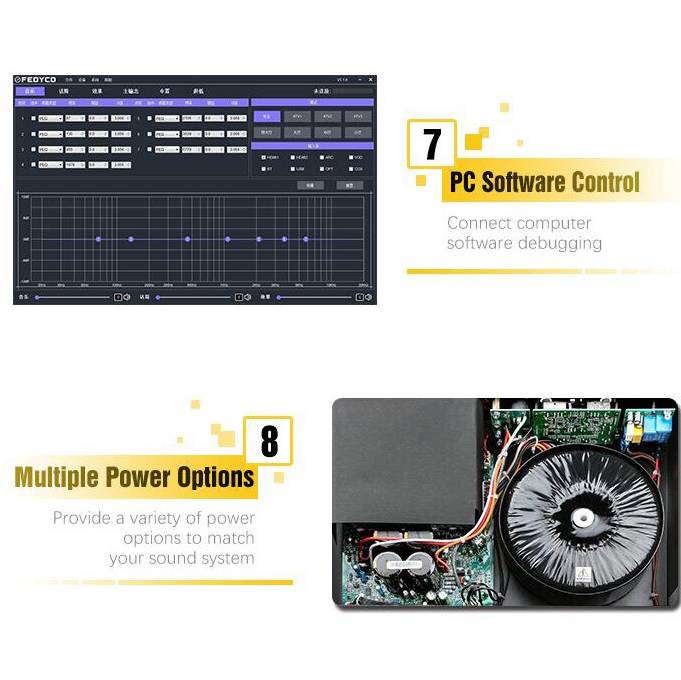

7. PC software control
Connect to computer software for debugging, simple and convenient.
| Model ： | HTV300 | HTV500 | HTV800 |
|
Stereo mode (dual/four-channel drive) |
Average continuous output power per channel | ||
|
8 Ω /FTC 20Hz - 20KHz @ 0.5% THD |
2*300W | 2*500W | 2*800W |
|
Bridge-8 ohm |
600W | 1000W | 1600W |
|
S/N:(20Hz - 20KHz ) 8 Ω |
98DB | 98DB | 98DB |
|
Distortion THD ( @ 8 Ω 1KHz ) |
< 0.5% | < 0.5% | < 0.5% |
|
INPUT IMPEDANCE |
20KΩ | 20KΩ | 20KΩ |
|
FREQUENCY RESPONSE |
20HZ-20KHZ@1w | 20HZ-20KHZ@1w | 20HZ-20KHZ@1w |
|
CIRCUIT TYPE |
H2 Class | H2 Class | H2 Class |
|
COOLING SYSTEM |
2 continuous fans, airflow from back to front | ||
| Dimensions (width x depth x height) | H: 2.5U | H: 2.5U | H; 2.5U |
| PROTECTION | Short circuit protection, overload protection, overheat protection, pressure limit protection | ||
Application
- Entertainment venue/Home use/Party use
